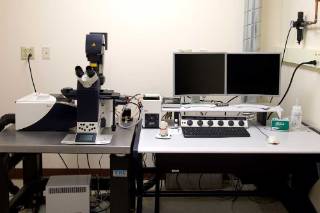

Leica SP5 Laser Scanning Confocal Microscope

The Leica SP5 system has nine laser lines and five tunable PMT detectors. The prism base beam splitter (AOBS) allows free selection of up to five lasers. Acousto Optical Tunable Filter (AOTF) allows fast laser line switch. Each PMT detector is individually tunable over the entire visible spectrum range, 400-800nm.

  • Leica_confocal_microscopeSuperZ galvanometer stage
    • 1500 micron travel range
      • 3 nm stepsize
    • 9 laser lines
      • Diode: 405nm,
      • Ar: 458, 476, 488, 496, 514 nm,
      • HeNe: 543, 594, 633nm
    • Simultaneous 5 channels detection
      • 5 individually tunable MPT detectors, the spectral range of each detector covers 400-800 nm.

    • Conventional scanner with maximal frame resolution 8192 x 8192 pixel

    • User defined scan modes (xt, xy, xyt, xyzt etc.) for imaging

    • Optional transmitted light detection, allowing BF, DIC etc
